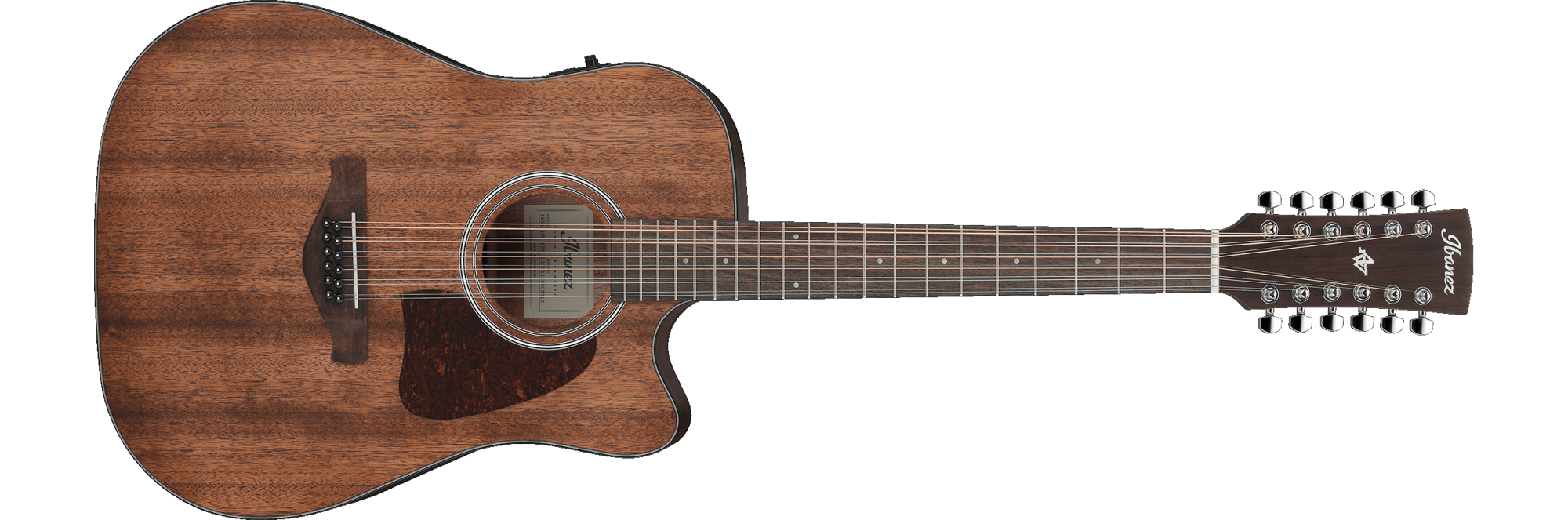

Ibanez AW5412CEOPN Acoustic Guitar

SPECS
- body shape

  Cutaway Dreadnought body
- top

  Solid Okoume top
- back & sides

  Okoume back & Okoume sides
- neck

  C ShapeNyatoh neck
- fretboard

  Laurel fretboard
- bridge

  Laurel bridge
- inlay

  White dot inlay
- soundhole rosette

  Black & White multi
- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- number of frets

  20
- bridge pins

  Ibanez Advantage™
- strings

  D'Addario® XTAPB1047-12
- string gauge

  .010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez T-bar Undersaddle
- preamp

  Ibanez AEQ-TP2 preamp w/Onboard tuner
- output jack

  Balanced XLR & 1/4" outputs
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    48mm at NUT
  - b : Width

    60mm at 14F
  - c : Thickness

    22mm at 1F
  - d : Thickness

    23mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 1/8"
  - b : Width

    15 3/4"
  - c : Max Depth

    5"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
